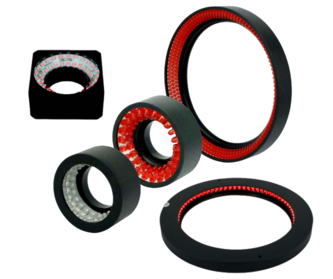

GL-LDR/ LDQ/ FDR Series

Ring lights provide two different angles, 60° and 90°.It effectively solves problems, shapes of concave-convex surface and shadows at 4 corners for measured object, which stably presents appearance defection. For highly reflective objects, an optional diffuser plate can be used to distribute the light.

Features:
The light is designed with 60° and 90°.
Clear image recognition especially for uneven surfaces, scratches, and laser engraving.
Diffusion plates are available.

Major Applications:
BGA solder ball position, shape, and area inspection.
Inspection of wafers or glass substrates for scratches and stains.
Reading laser engraving.
Edge detection and defect inspection.

Model name example:

GL-LDR4822R-24

Model explanation :

Model name example:

GL-LDQ7040R-24

Model explanation :

Model name example:

GL-FDR8454R-24

Model explanation :
