Under Vehicle Inspection System (UVIS)

The system is designed to use multi-cameras array that eliminates blind spots, allowing observation of over beam area, cavities and other places which are hidden by an orthogonal imaging position.

The system supports scanning of all vehicle types – private cars, vans, buses, and trucks with or w/o trailers.

It allows free drive with no need to stop for the scanning.

The solution also supports bi-directional scanning.

The application embeds several state-of-the-art algorithms, providing competitive superiority:

Automatic exposure compensation
Automatic frame rate adaptation according to the vehicle's speed
Auto-focusing option for coping with vehicles height differences.
Strobing illumination control for increased intensity and longer lifetime

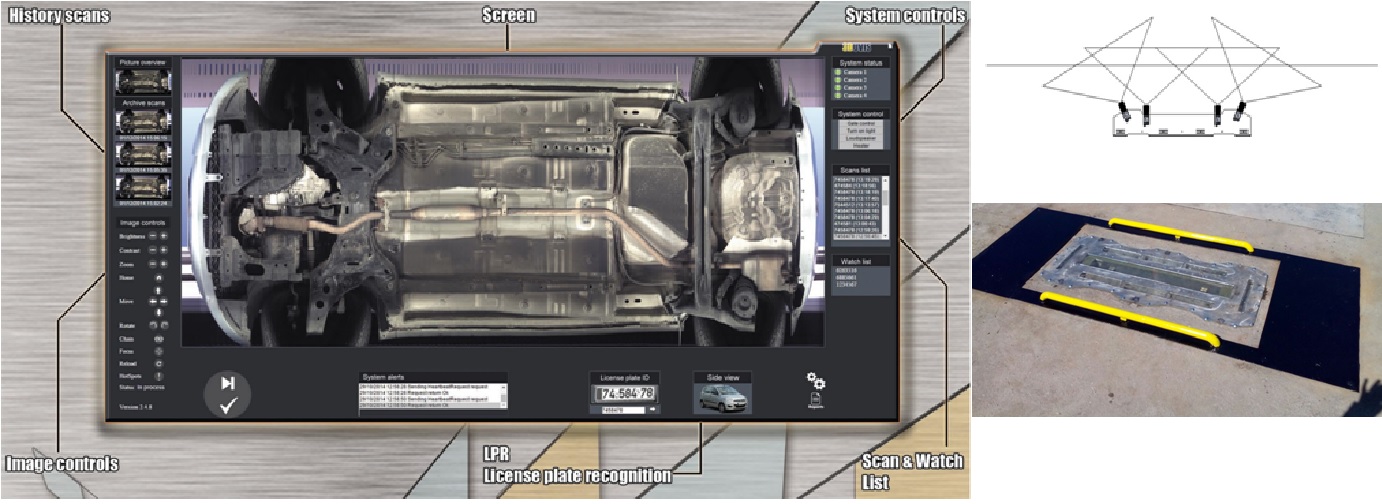

Panoramic image view for a fast and intuitive overview
Detailed high-res images of any position of the undercarriage
Different viewing angles of any spot
Side image for better indexing of vehicles
Automatic "foreign" objects detection and warning, based on a single footprint, based on actual texture/hue information.
Automatic "foreign" objects detection and warning, based on history database and classification.

The under vehicle inspection system is working together with an ALPR (Automatic License Plate Recognition) camera, every vehicle is automatically stored in the Under Vehicle Inspection database system by license plate number with high-resolution color undercarriage footprint.

These high resolutions scanned images enable detection of objects with a minimum size of 0.5*0.5 cm².
