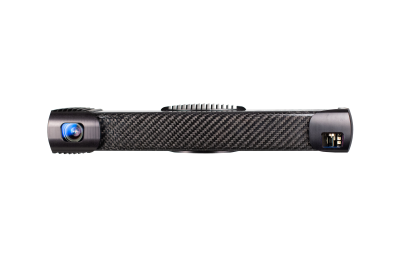

MotionCam-3D

Photoneo MotionCam-3D is the world’s highest-resolution and highest-accuracy area 3D camera for dynamic scenes.

It is your go-to device for applications requiring fast and robust 3D acquisition.

Reconstruct accurate point clouds of various objects in a high level of detail without compromises on quality caused by vibrations, ambient light or motion blur.
This makes it your ideal 3D vision companion for handling objects in motion.

Parameters	S	S+	M	M+	L
Scanning range	366-558 mm	630 - 1574 mm	497 - 939 mm	630 - 1574 mm	778 - 3034 mm
Camera Mode
Point size	0.37 mm @z = 442 mm	0.76 mm @z = 900 mm	0.55 mm @z = 650 mm	0.76 mm @z = 900 mm	1.05 mm @z = 1239 mm
Accuracy	< 0.300 mm	<1.000 mm	< 0.500 mm	< 0.600 mm	< 1.250 mm
Temporal noise	< 0.100 mm	< 0.150 mm	< 0.100 mm	< 0.100 mm	< 0.150 mm
Point size	0.25 mm @z = 442 mm	0.52 mm @z = 900 mm	0.37 mm @z = 650 mm	0.52 mm @z = 900 mm	0.72 mm @z = 1239 mm
Accuracy	< 0.150 mm	< 0.500 mm	< 0.250 mm	< 0.300 mm	< 0.900 mm
Temporal noise	< 0.050 mm	< 0.100 mm	< 0.050 mm	< 0.050 mm	< 0.100 mm
Depth map resolution (static mode)	1680 x 1200	1680 x 1200	1680 x 1200	1680 x 1200	1680 x 1200
Depth map resolution (dynamic mode)	1120 x 800	1120 x 800	1120 x 800	1120 x 800	1120 x 800
Maximum FPS	20 fps	20 fps	20 fps	20 fps	20 fps
Data acquisition time	10 ms	10 ms	10 ms	10 ms	20 ms
Maximum object / camera speed	40 m/s	40 m/s	40 m/s	40 m/s	40 m/s
3D point throughput	15 million points per second	15 million points per second	15 million points per second	15 million points per second	15 million points per second
GPU	NVIDIA PascalTM Architecture GPU with 256 CUDA cores	NVIDIA PascalTM Architecture GPU with 256 CUDA cores	NVIDIA PascalTM Architecture GPU with 256 CUDA cores	NVIDIA PascalTM Architecture GPU with 256 CUDA cores	NVIDIA PascalTM Architecture GPU with 256 CUDA cores
Dimensions	80 x 68 x 307 mm	80 x 68 x 307 mm	80 x 68 x427 mm	80 x 68 x 427 mm	80 x 68 x 627 mm
Baseline	230 mm	230 mm	350 mm	350 mm	550 mm
Weight	1300 g	1300 g	1400 g	1400 g	1500 g

Relevant Documents

MotionCam-3D (8575KB)
