MB-CTL Series

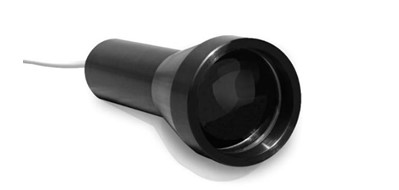

Metaphase Technologies Collimated Tube lights are ideal for producing high-contrast silhouettes. The Collimated Tube Light boasts increased illumination compared to standard backlights when used with Telecentric camera lensing. Due to collimated light rays, this telecentric illumination is ideal for precision measurements where accuracy, repeatability, and throughput are key factors in the application’s success.
- Collimated spot size of 1.5 inches (3.81 cm)
- Passive thermal management design draws heat directly from the LED die ensuring long life
- Compact housing for easy integration
- Built-in Constant Current Driver with 0-10VDC Intensity Control.
- Compatible with DDC-3 and ILD-35 Dimmers
- Optional mounting bracket available
- 5° Collimation angle
|
PART NUMBER KEY |
||||||||||
|
MODEL |
SIZE |
- |
WAVELENGTH |
- |
DRIVER |
- |
CABLE LENGTH |
- |
CONN |
|
|
MB-CTL |
XXX |
- |
XXXXX |
- |
XXXXXXX |
- |
XXX |
- |
XXXX |
|
|
MB-CTL |
41 (41mm) |
|
W (White 6000K, Nominal) |
|
|
24Z |
|
5M |
|
M12D¹ ² |
|
R (Red 630nm) |
|
24NZ |
10M |
BC¹ ³ |
||||||
|
G (Green 530nm) |
|
24-ILSXXX |
|
|
||||||
|
B (Blue 470nm) |
|
24-ILD |
|
|
||||||
|
IR850 (Infrared 850nm) |
|
U¹ |
|
|
||||||
|
IR940 (Infrared 940nm) |
|
|
|
|
||||||
|
UV365 (UV Short 365nm) |
|
|
|
|||||||
|
UV395 (UV Long 395nm) |
|
|
Length can be customized: ex.7M=7meters |
Select or leave blank for flying leads |
||||||
|
|
|
XXX=rate in µs Example: 250 |
Select or leave blank for 3 meters |
|||||||
|
Collimated Tube Backlight |
||||||||
|
MODEL |
Length Inches (mm) |
Lens Diameter Inches (mm) |
Weight lbs (grams) |
Cable QTY |
Cable Length |
Cable Description |
Typical Input Current |
|
|
Visible |
IR/UV |
|||||||
|
MB-CBL41 |
6.3 (159.54) |
1.6 (40.23) |
0.9 (408.2) |
1 |
10ft |
24 AWG 4-conductor |
0.1A |
0.4A |
|
Wiring (flying leads)** |
|
|
Wire Color |
Function |
|
RED |
+24VDC |
|
WHITE |
0-10VDC INTENSITY CONTROL |
|
BLACK |
GROUND (24V RTN) |
|
GREEN |
SIGNAL GROUND |
