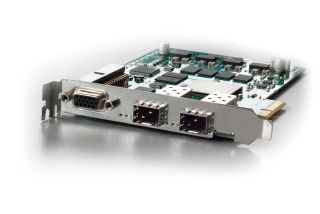

ME5-AF2

microEnable 5 marathon AF2 focuses on high-speed image acquisition with up to 2*Camera Link HS cameras and offers with DMA1800 technology and optical connections an powerful access to special Machine Vision applications. First Camera Link HS F2 Frame grabber with fiber optics cable support Dual 1200 MB/s F2 fiber optic 300 meter distance interface (SFP connectors) Support of Area and Line Scan cameras Topologies: Multi-Camera/Single-frame grabber and Single-Camera/Multi-Frame grabber DMA 1800 / up to 1800 MB/s PCIe Data bandwidth (PCIe x4 Gen2) Opto-isolated front GPIO from 4,5 – 28V, TTL Outputs, RS 485 interface Internal GPIO – interface with support for ad-on GPIO-Boards (requires additional slot) 100% compliant with Silicon Software SDK und GUI control and services tools Flexible and extensible model series IP Core available from AIA ensuring interoperability and short development times
