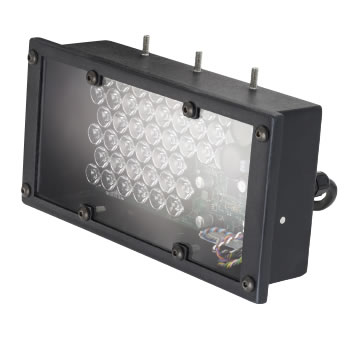

VCT6-850

The Gardasoft VCT6 lights provide a very powerful LED strobe illumination for OEMs creating ITS solutions, and can be ordered as complete with IP65 housing (VCT6) or board-only version (VCT6-T20). Using the highest high power LED technology available, the VCT6 system supplies up to 500W pulses to the LED array. It is fully integrated with internal timing, intensity control, trigger input and long distance communications. The illuminators are available in Board format or compact IP65 rated housings allowing for flexibility of OEM development design and installation in very harsh environments if required. All VCT6 products are RoHS compliant. VCT6 lights are available in a range of wavelengths and beam angles to match applications with their unique imaging requirements. IR wavelengths for non-invasive applications: White light plus other visible wavelengths are available when specific or additional vehicle/driver details are required. A trigger input signal is available to synchronise the lighting pulse with camera exposure, and the VCT6 can optionally be operated in a free-running mode from a programmable internal timer.
PRODUCT NAME VCT6-850
CATEGORY Illumination
SUB CATEGORY ANPR/LPR;
MANUFACTURER Gardasoft
Size 230x117x60.5
Datasheet Download
Voltage 12~24v
Temp. Range -20° to 55°C
Illumination Color Infra-Red (850nm)
Freq range [MHz] 10kHz
Environmental IP65
Max Current Continuous 2.5A
Max Current Pulsed 500W
