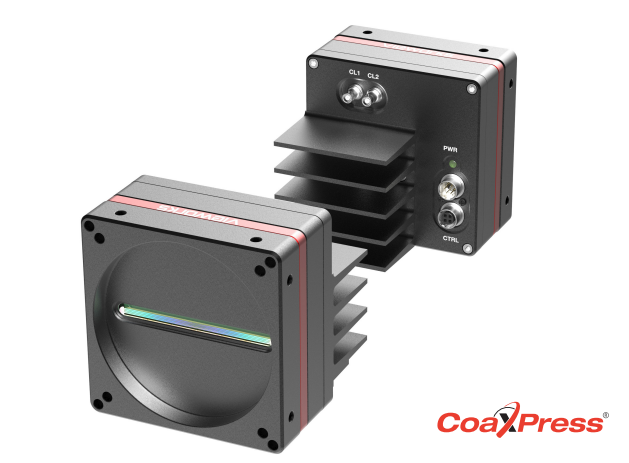

VL-8K7X2-M67I-4

The VL-8K7X2-M200I-2, VL-8K7X2-M67I-4 and VL-8K7X2-C67I-4, the latest models of the industrial proven VL series, are new 8k CMOS line scan cameras available with the CoaXPress 2.0 interface. The VL-8K7X2-M200I-2 camera delivers a maximum line rate of 200 ㎑ at 8k resolution. Even higher resolution, up to 8192-pixel resolution at 200 ㎑ line rate can be achieved using the VL-8K7X2-M200I-2 camera. The VL-8K7X2-C67I-4, the color line scan cameras, are also available for your color applications and color detection. Featuring high sensitivity and high speed, these cameras are ideal for wide range of demanding applications. such as flat panel display inspection, printed circuit board inspection, and high-performance document scanning.

Main Features:

• CMOS Line Scan

• CoaXPress 2.0 Interface

• Maximum 8k Pixel Resolution

• Exposure Control

• PoCXP Compliant

• GenICam Compatible -XML based Control

PRODUCT NAME VL-8K7X2-M67I-4

CATEGORY Cameras

SUB CATEGORY Line

Camera Type Line

Resolution [MPixel] 8192 × 1

Width [Pixel] 1

Height [Pixel] 8192

FrameRate [f/s] 67, 50 ㎑

Pixel W[µm] 7.0 ㎛

Pixel H[µm] 7.0 ㎛

Interface CoaXPress 2.1

Shutter Type Global Shutter

Bit_Depth 8, 10, 12 bit

MANUFACTURER Vieworks

Size 81 ㎜ × 80 ㎜ × 73 ㎜

Datasheet Download

Sensor Model Gpixel GL7008

Mount M72

Voltage 11 - 24 V

Temp. Range -40℃ ~ 70℃

Weight[g] 578 g

USERMANUAL Download

ColorMono Mono
