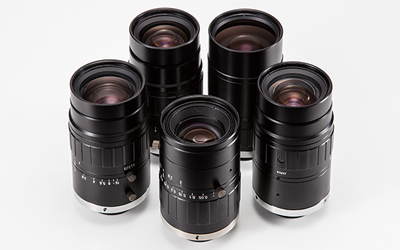

VS-LLD12.5

The VS-LLD series' distortionless design, in combination with a Floating System of internal lens elements, allows it to deliver high resolution performance at any magnification. With a maximum sensor size of up to 4/3" it is a great selection to use for any application using a large sensor format that needs a distortionless image.

PRODUCT NAME VS-LLD12.5

CATEGORY Optics

SUB CATEGORY Macro Lens-sub

Sensor Format 4/3ʺ

MANUFACTURER VS

Datasheet Download

Mount C

Weight[g] 380g

F# 2

MOD 40.9

Focus Type Manual

Iris Type Manual

Zoom Type Manual

Opt. Mag. 0.05 to 0.25

DRAWING Download
