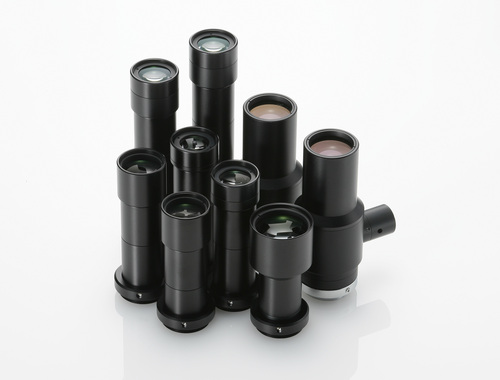

VS-TCH Series

VS Technology’s telecentric lenses are available in a wide range of optical magnification and WD to meet the needs of various applications, including various sensor sizes, distortion less designs, large sensors, and high-resolution camera compatibility.

High Resolution Telecentric Lenses:

The VS-TCH series was designed for use at a 65mm or 110mm WD (depending on the particular lens) with up to a 2/3" sensor camera. It is a great choice for any machine vision application needing a high resolution, distortionless image.
2/3" sensor support
65/110mm WD
High Resolution
High Telecentricity
C-Mount

Model	Mag.	WD (mm)	NA	Co-axial Lighting	Mount
VS-TCH05-65	0.5x	75.3	0.027	-	C-Mount
VS-TCH08-65	0.8x	70.3	0.042	-
VS-TCH1-65	1.0x	68.8	0.05	-
VS-TCH1-50	1.0x	53.3	0.05	-
VS-TCH1.5-65	1.5x	65	0.064	-
VS-TCH2-65	2.0x	65	0.074	-
VS-TCH3-60	3.0x	59.8	0.073	-
VS-TCH4-65	4.0x	65	0.112	-
VS-TCH6-65	6.0x	65.8	0.111	-
VS-TCH05-65CO	0.5x	75.3	0.027	○
VS-TCH08-65CO	0.8x	70.3	0.042	○
VS-TCH1-50CO	1.0x	53.3	0.05	○
VS-TCH1-65CO	1.0x	68.8	0.05	○
VS-TCH1.5-65CO	1.5x	65	0.064	○
VS-TCH2-65CO	2.0x	65	0.074	○
VS-TCH3-60CO	3.0x	59.8	0.073	○
VS-TCH4-65CO	4.0x	65	0.112	○
VS-TCH6-65CO	6.0x	65.8	0.111	○
VS-TCH05-110	0.5x	110.8	0.026	-
VS-TCH08-110	0.8x	110.7	0.036	-
VS-TCH1-110	1.0x	110.3	0.048	-
VS-TCH1.5-110	1.5x	110.8	0.063	-
VS-TCH2-110	2.0x	110.8	0.074	-
VS-TCH3-100	3.0x	103.1	0.072	-
VS-TCH4-110	4.0x	110.8	0.09	-
VS-TCH6-110	6.0x	110.9	0.076	-
VS-TCH05-110CO	0.5x	110.8	0.026	○
VS-TCH08-110CO	0.8x	110.7	0.036	○
VS-TCH1-110CO	1.0x	110.3	0.048	○
VS-TCH1.5-110CO	1.5x	110.8	0.063	○
VS-TCH2-110CO	2.0x	110.8	0.074	○
VS-TCH3-100CO	3.0x	103.1	0.072	○
VS-TCH4-110CO	4.0x	110.8	0.09	○
VS-TCH6-110CO	6.0x	110.9	0.076	○

PRODUCT NAME VS-TCH Series

CATEGORY Optics

SUB CATEGORY Telecentric Lens

MANUFACTURER VS
