VS-TCT08-65CO/S

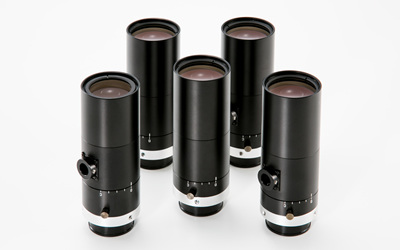

The VS-TCT series lineup consists of our highest resolution Telecentric lenses. With 1.67µm resolution you can expect an excellent image from any sensor 2/3" or lower. Both normal and coaxial lighting ready models are available.

PRODUCT NAME VS-TCT08-65CO/S

CATEGORY Optics

SUB CATEGORY Telecentric Lens;

Sensor Format 2/3ʺ

MANUFACTURER VS

Datasheet Download

Mount C

F# 4.5

MOD 65.1

Opt. Mag. 0.8x

DRAWING Download

NA 0.089
