VS-TLS200-01B

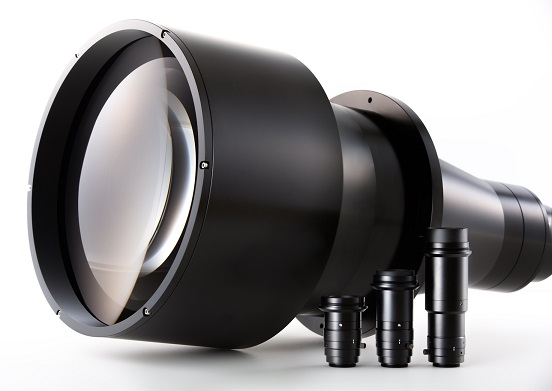

VS-TLS Series

Supports 12MP 1.1"
Front Unit - Rear Unit Reconfigurable Telecentric Lens

3.45μm Resolution
6 Models 0.029ｘ~ 0.1x
Magnification can be changed by changing the rear unit
Fine tuning of WD is possible by the focus adjustment
Distortion-less Design
C-Mount

PRODUCT NAME VS-TLS200-01B

CATEGORY Optics

SUB CATEGORY Telecentric Lens;

Sensor Format 1.1ʺ

MANUFACTURER VS

Datasheet Download

Mount C

Weight[g] 4900g

F# 5.6

Opt. Mag. 0.1

DRAWING Download
