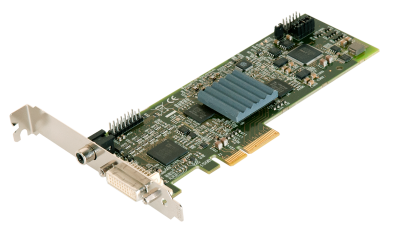

XtremeAV-HD1+

HDMI, DVI, RGB, YPbPr, composite video and analogue audio capture
High quality up/down scaling (7×5 Polyphase Filter)
Flexible Audio Capture
Multiple channel audio and video capture
Small form factor low power consumption
On card processor for real time mode detection
Support for Windows and Linux (NOTE: Check Linux specific features with Sales)

PRODUCT NAME XtremeAV-HD1+

CATEGORY Acquisition

SUB CATEGORY Digital;

Interface HDMI, DVI, RGB, YPbPr/ NTSC, SECAM, PAL

MANUFACTURER EMS

Host Interface PCIe x4

OS Support Win, Linux

Programmable FPGA No
