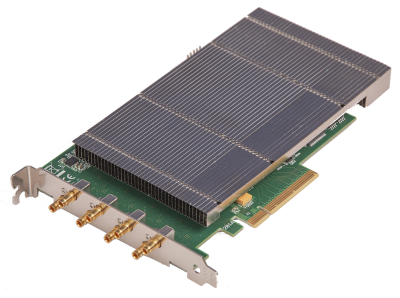

XtremeRT-SD4

Four High Definition SDI inputs
Four High Definition SDI outputs
Real time hardware overlay
Eight lane PCI Express 3.0 capture card
Capture 4x 3G/HD/SD-SDI signals with audio (which can be combined to create one 4k/UHD capture and display)
All the features of EMS’s latest XtremeDV range of capture cards

PRODUCT NAME XtremeRT-SD4

CATEGORY Acquisition

SUB CATEGORY Digital;

Interface HDMI

MANUFACTURER EMS

Host Interface PCIe x8

OS Support win

Programmable FPGA No
